*Laminating machine

 FM650

名称: FM650

分类:*Laminating machine

咨询热线:+86 571 63131356

Contact us

详细说明:

Product Description

FM650 double sides hot and cold roll laminating machine

FM650 was named by SIGO company. Before you choose FM650, Pls check the power switch lies on top pannel.
Application:
After printing equipment. Available for photographic, Ad. Shop and shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.
Applicable Laminating Medium: Photopaper, PP, self adhesive PP, backlit film or transparent film

FM360/FM480/FM650/FM1100 Roller Laminating Machine
Model number
FM360
FM480
FM650
FM1100
Max. laminate width
340mm
480mm
635mm
1080mm
Max. laminate thickness
5mm
Laminating speed
0.2-1.6m/min
Temperature
0-140°C
0-160°C
Max. thickness of film
250mic
Display screen
LED Screen
Forward and Reverse
Yes
Feeding roller dia.
45mm
45mm
55mm
65mm
Discharge roller dia.
30mm
30mm
45mm
55mm
File core dia.
1inch, 3inches
Hot and cold laminating
Yes
Double sides laminating
Yes

Main Features

1) Forward and reverse function, when the paper jam, you can return by Reverse button.

2) Single and double sides laminating. You can choose it according to requirement.

3) 2 in 1 hot and cold laminating, no matter bopp film or cold film can work with FM480 laminating machine.

4) Import silicon rubber roller. It can use long time to keep temeperature for 24 hours.

5) There are presuure handle to fix different kind of paper.

Detailed Image

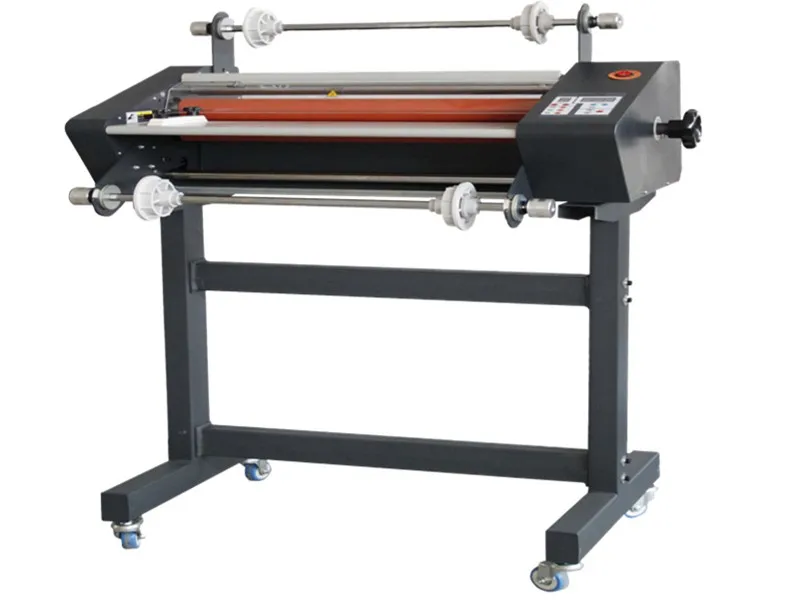

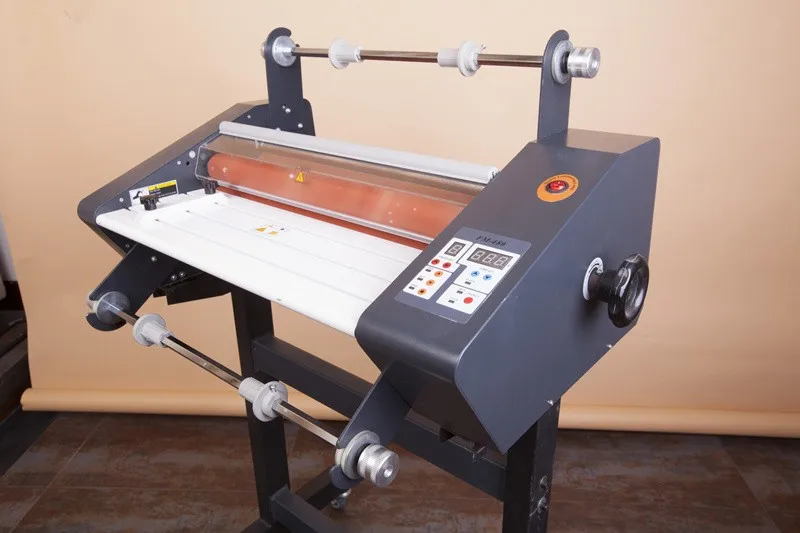

fm360/fm380/fm480/fm650/fm1100 double sides hot and cold roll laminating machine for sale

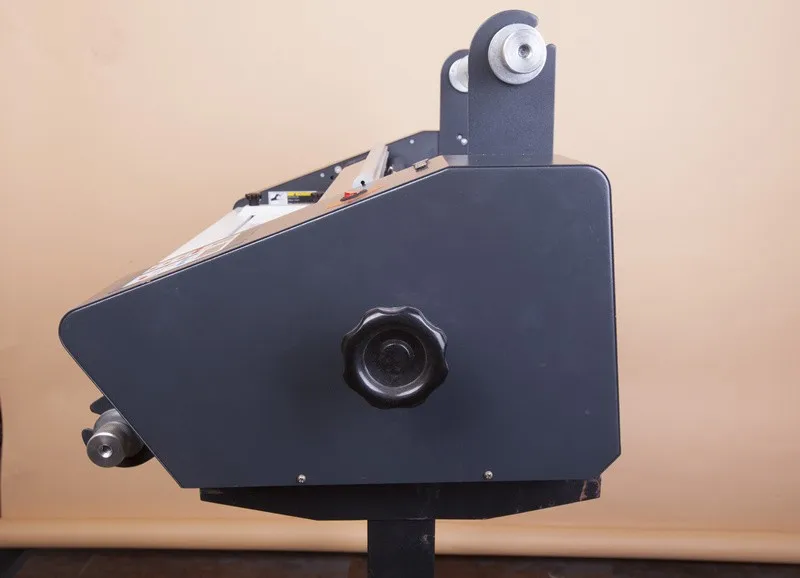

Structure

Strong metal body.
Beautiful appearance.
Professional and human design for FM650.
Unique design for heating button.
Before you buy FM650, pls check the heating button lies on top pannel.

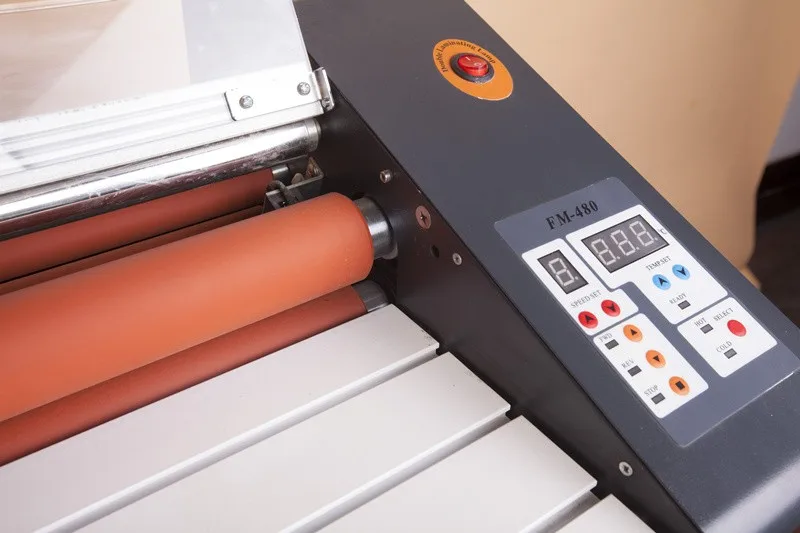

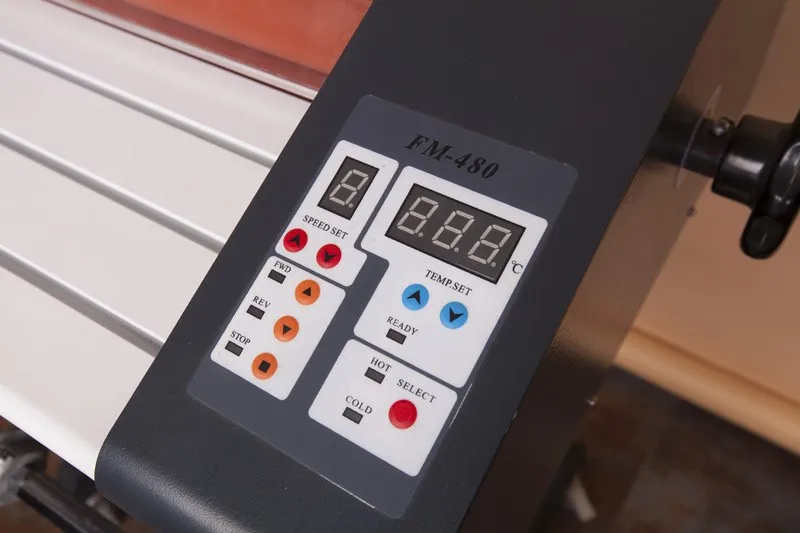

Operating pannel

Easy to use.
Speed can be set 9 level
Temp can be set from 0-160℃, so that it can use for different thickness of BOPP film.
Forward and reverse function and emergency button.
It can be use for laminate with hot and cold

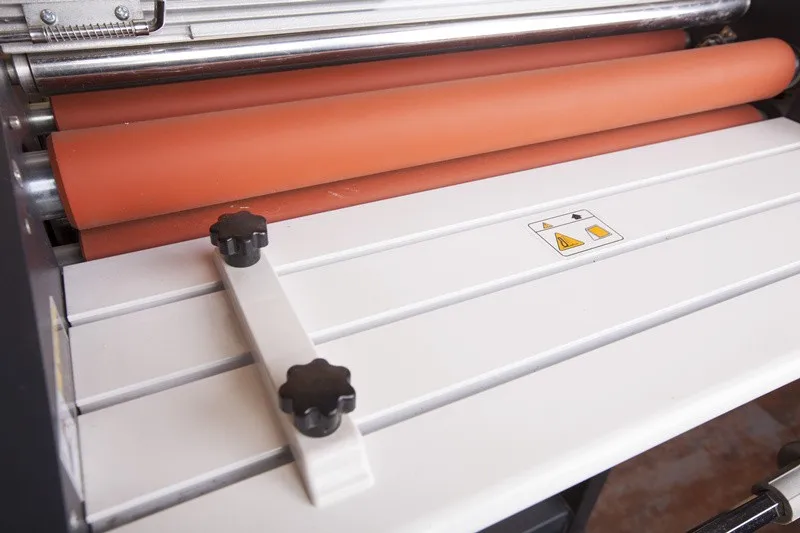

Rubber roller

Import heating roller.
Easy to be clean.
HIgh qulity to make sure long service life.
Heating roller dia.:55mm

Working table and Limit block



Aluminum alloy table to looks beautiful.
Professional liminting block to adjust working size.
Opps: When you feeding paper, pls put the paper in the middle of table.

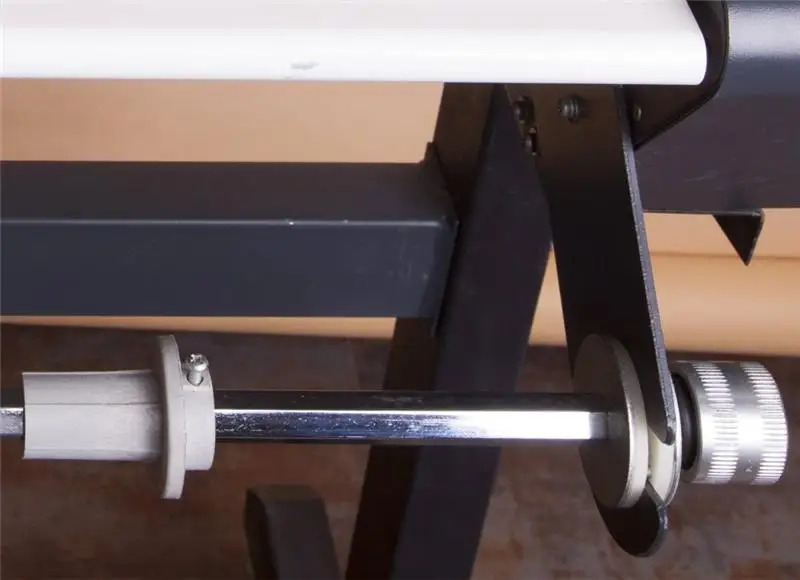

Install film rod



Metal rod to fit FM 650 roll laminator.
Equipped with 1inch and 3 inches bushings

Press paper wheel



Comportable design for press paper wheel.
You can adjust this wheel to meet different thickness of paper.
Convenient. Good job!!!
