*Laminating machine

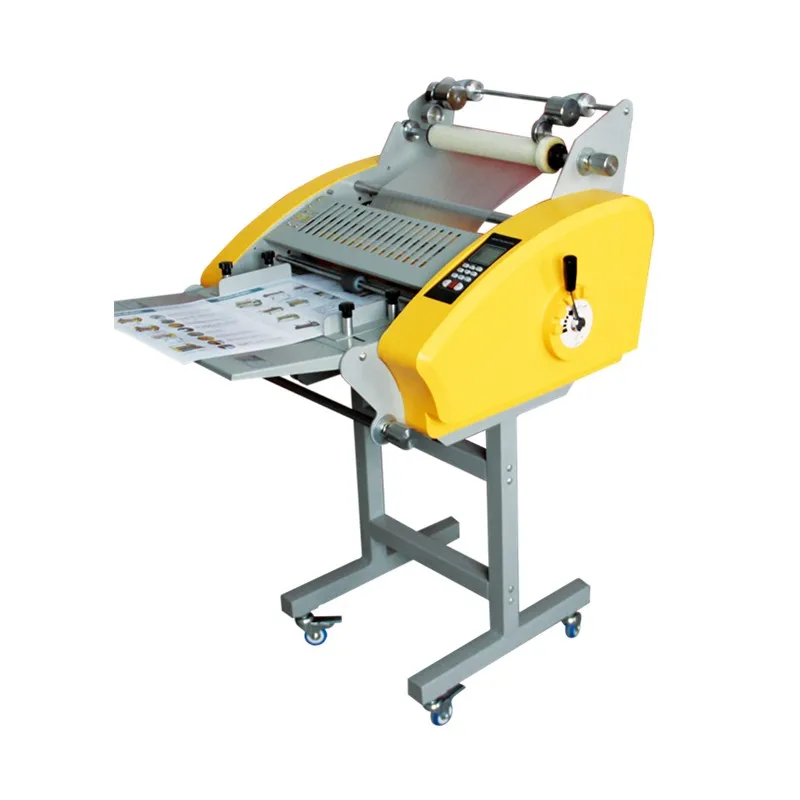

SG-3866

名称:SG-3866

分类:*Laminating machine

咨询热线:+86 571 63131356

Contact us

详细说明:

Product Description
SPECIFICATIONS FOR SG-3866 laminating machine
Power supply
AC210V~230V(50HZ) AC110V(60HZ)
Power consumption
1300w
Max. Laminate width:
380mm
Laminate Thickness:
60-800gsm
Max. Laminate speed:
600-3000mm/min
Warming up time:
10min
Suggested laminate bopp film:
25-250mic
Max. temperature:
180degree
Operating panel:
LCD SCREEN
Auto feed paper with belt:
yes
Auto slitting paper
yes
Single/Double Laminate:
yes
Cold&Hot Laminate:
yes
Cut film knife:
yes
Perforatingknife: Yes knife:
yes
Max. clearance between top bottom rollers:
6mm
The maximum diameter of roll film:
200mm
Heating roller dia
55
Pull roller dia:
40mm

MAIN FEATURES

1) Simple structure in linear type ,easy in installation and maintation.
2) can be both cold and hot laminating
3) can be single and double side laminating
4) Running in a high automatization and intellectualization,no pollution .

Detailed Images

Adjust pressure handle

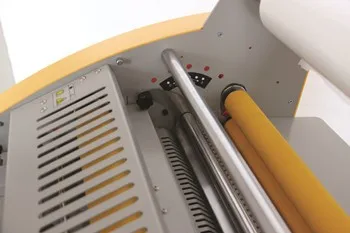

Automatic feed paper system

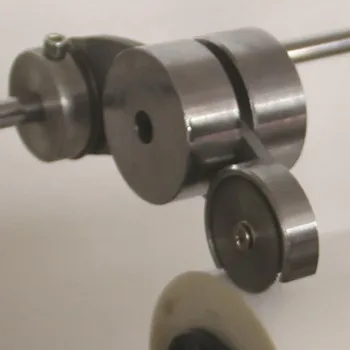

Cutting blade

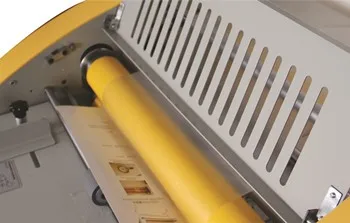

High quality rubber roller

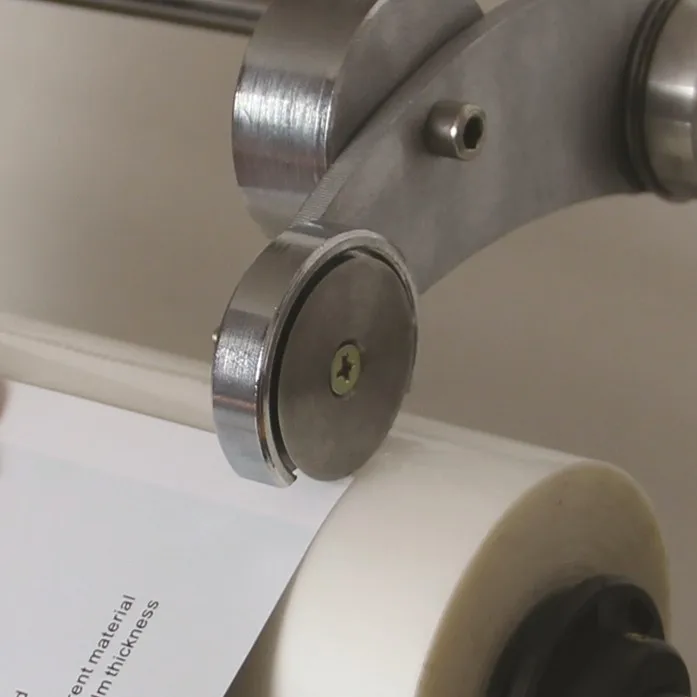

perforating blade

Soothing shaft
