XDD-106 (Auto-Electric)Saddle Stitching and Flat Medium Auto-Electric Stapler
1. Binding thickness: 2-50 sheets(70g)
2. Saddle and flat stitching adjustable. Dual functions. Stitching depth: 100mm(3.9inch).
3. You can operate one machine or operate several machines synchronously by connecting them together.
4. Safety foot switch included.
5. If Two machines work together. Two staplers come out on one time stitching. Over 60 stapling/min.
6. Easy switch between saddle and flat stapling mode by plugging or unplugging the foot switch
7. Power on/off with indicating light
8. Flat stapling mode (foot switch unplugged): automatic start when paper touches one of the trigger switches.
9. 210 staplers containable on the stapler container.

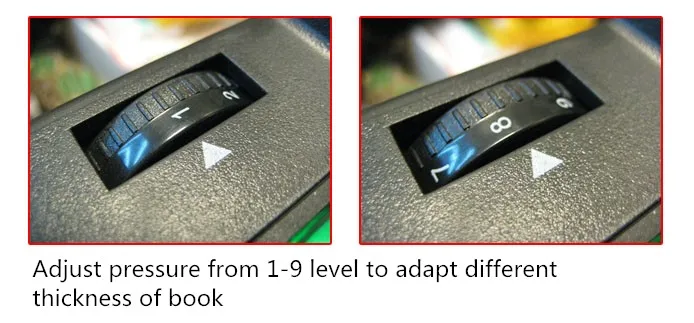

10. Adjustable stapling pressure (force). 9 different pressures adjustable.
11. Safety switch protects operator when front cover is open.
12. Synchronous binding by several machines is applicable.
Spec List
1.Stitching depth:100mm(3.9inch)
2.Speed:60 times/min
3.Nailing intensity adjustment:1-9
4.Magazine:210 Rapid 66/6-8mm staples
5.Capacity in flat stapling:Up to 40 sheets(75gsm)
6.Capacity in saddle stapling:Up to 20 Sheets(75qsm)
7.Supplied:Table.250*150mm,0.7kg
8.Package dimension: 20 ''x 12'' x 6"
9.Package weight: 15 lbs
10.Power: 110V/220V available
11.Staple request: 66/6, 66/8
