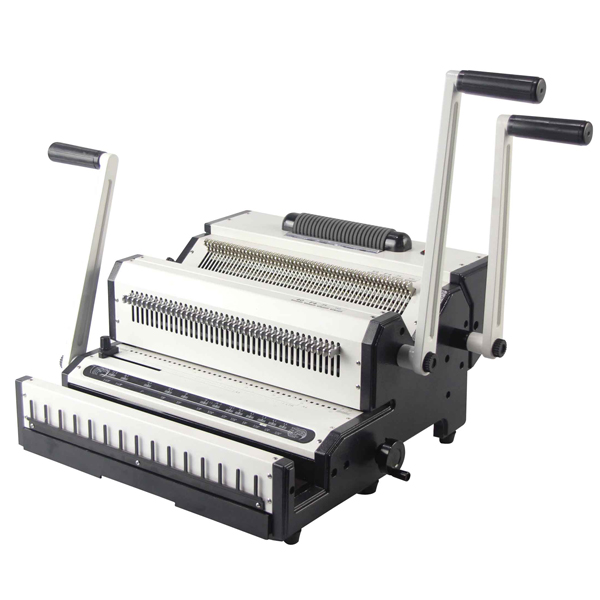

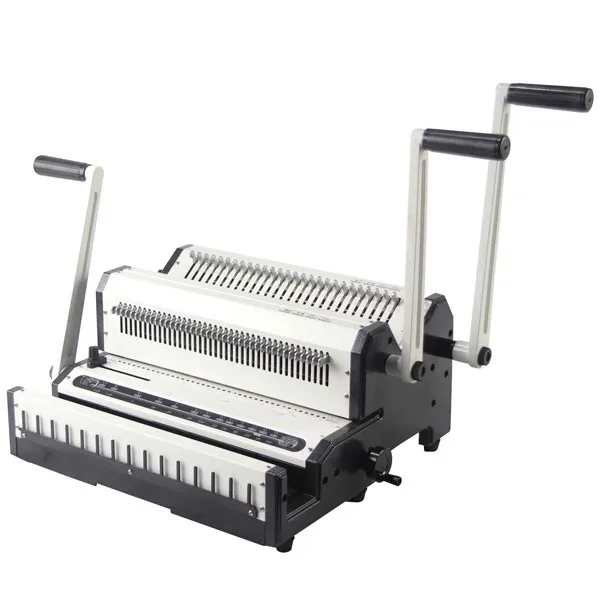

SG-WW2500A
作者： 本站来源： 本站时间：2019-09-26
Product Application
|
|
|
|
|
|
Model
|
Comb and Wire 3:1-CW2500A
|
Wire 3:1 and Wire 2:1-WW2500A
|
Wire and Coil -SW2500A
|
|
Max punching capacity(sheets)
|
25sheets
|
25sheets
|
25sheets
|
|
Max binding capacity(sheets)
|
500/140sheets
|
140/300sheets
|
500sheets
|
|
Max punching width(mm)
|
Below340(F4)
|
Below340(F4)
|
Below340(F4)
|
|
Number of holes
|
24&40 (3:1) or 24&27 (2:1)
|
27 (2:1) & 40 (3:1)
|
27 (2:1) & 54 (4:1) or 40 (3:1) & 54 (4:1)
|
|
Adjustable Margin(mm)
|
2.5, 4.5, 6.5
|
2.5, 4.5, 6.5
|
2.5, 4.5, 6.5
|
|
Quantity of Movable Cutter
|
ALL
|
ALL
|
ALL
|
|
Net Weight(kgs)
|
28.5
|
25.5
|
28.5
|
|
Size of Machine(mm)
|
480x405x220
|
480x405x220
|
480x405x220
|
Main Features
1) Easy for punching and binding
2) Max. punching sheets reach to25 sheets
3) Max punching width(mm): Below340(F4)
4) Quantity of Movable Cutter :ALL
5) One year warranty
