名称：SG-H3200

分类：Inkjet printer

咨询热线：+86 571 63131356

详细说明：

Product Description

SIGO Brand SG-H3200 High quality 3.2m or 12.6ft fast speed Dx7 Head Eco Solvent Printer from professional manufacture is suitable for producing advertising and fabric printing in almost of material. It is widely used to produce the indoor and outdoor advertising, car and bus ribbon paper, heat transfer paper, etc with all kinds of ink.

Advantages:

1.The printing quality is competitive to the Japanese Eco solvent printers;
2.Standard double printheads design, double printing speed compared with single printhead;
3.Automatic feeding and collecting structure;
4.Two printheads design with intelligent infrared heater and fan drying system;
5.The machine through different quality tests is stable and competent enough for mass production requirement .
6.1440dpi overturns the highest resolution of traditional printers which leads the resolution of large format outdoor printing to a new standard.
7.Your new profit pattern will be established and new business opportunity will be discovered.
8.Support two rolls of media printing together, 50% enhanced in speed.

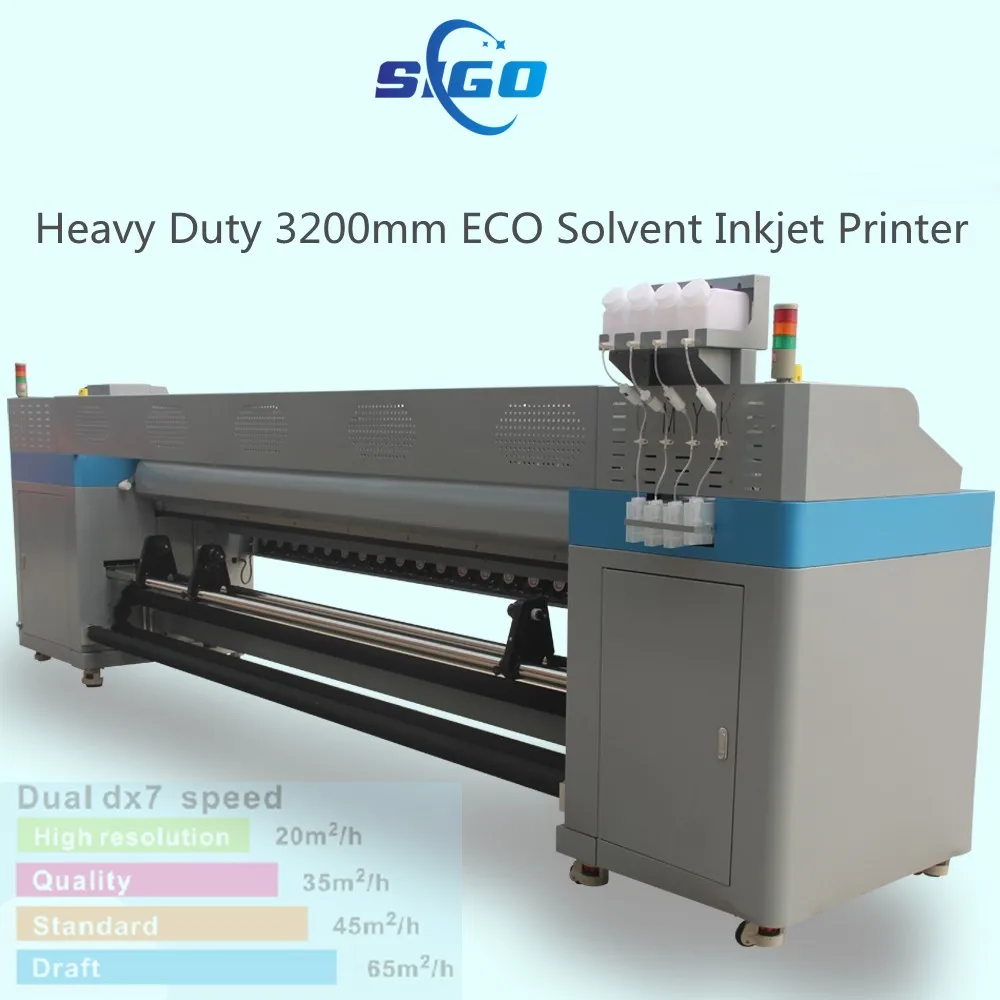

China SIGO High speed 3.2m eco solvent inkjet printer H3200-X7 for banners
Model	ADL-H3200
Print Head	Piezo-electric prinhead DX7
Number of Printhead	TWO
Maximum Print Width	3150mm
Printing Resolution	1440X2880 dpi
Printer color	Golden/Gray/Blue/RED
Print Speed	Draft :60m2/h
	Production :36m2/h
	Quality :30 m2/h
	High-resolution :16m2/h
Ink	Type	Eco-solvent ink; Water-based ink
	Color	Double4 colors(C/M/Y/K)
	Capacity	440ml of each ink cartridge
	Ink supply system	Continuous Ink Supply System
Width	3200mm
Type	Vinyl, Flex,Banner,Wallpaper,PP,Car sticker, Photo paper, Inkjet Light Box,PVC film,Wallpaper, Reflective film, Textile, fabrics, Canvas, Gum,etc
Printhead Height	1.5-3mm above media adjustable

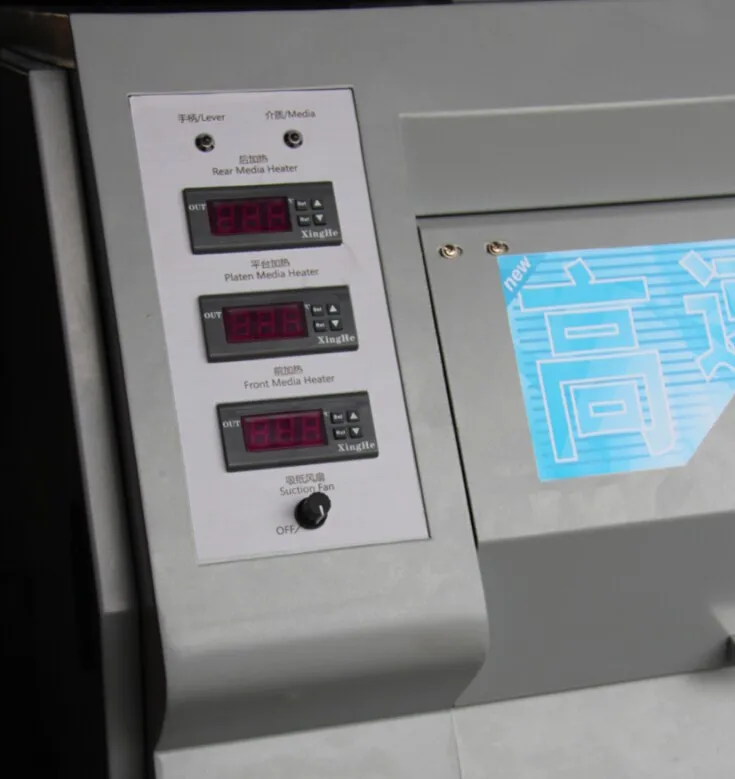

Drying System	Heating	Front ,middle ,back three sections heating system,PID temperature controller
	fanning	Optional
Media adsorption System	Several phase of intelligent air draft(Adjustable)
Media Feeding System	Equipped(Max. Media weight 40 kg)
Auto media Take-up System	Optional
Auto cleaning of Printhead	Owning anti-blocking, auto flash & moisturizing function
Clamp	Equipped
Print Interface	USB 2.0
RIP Software	Maintop 5.3/photoprint
Input Power	AC 220V,50Hz/AC 110V 60Hz
Working enviroment	Normal temperature 18-35°C, Humidity 40%-70%
Package Size	4600mm1040mm1470mm (LxWxH)
Weight	800KG

Detailed Images

Features

1.Adopt EPSON Dx 7 Printhead, printing color are CMYK, greatly improve the printing speed
2.Advanced MicroPiezo Technology, realized 1440dpi, perfect printing effect
3.Stable Mute linear Guide will improve the printing speed and resolution.
4.Convenience high speed USB interface, plug and play.
5.Automatic lifting ink stack, precision alignment, smooth ink absorption.
6.Intensive pressure roller, printing no skew.
7.Independent research and development, main board upgrade more convenience.
8.Heating Tempearture can be control based on printing demand.

Functions of 3.2 m eco solvent printer
1. Chinese and English operation interface.
2. CAD can output directly.
3. Imported linear guide packed in country of origin, more stable, longer working life and lower noise.
4. Imported dual direction motor, high-resolution driver linear encoder, higher resolution, fewer errors in length, more stable running.
5. High-speed USB interface, transmission speed can reach to 480M/S, it is convenient to plug in and out.

Machine Parts

Double4 colors (C M Y K) ink supply system.

Name: Ink Box

Brand: Audley
Original: China
One level and two level ink box ensure the ink gentle and stable offering to printer.

Machine Parts

Name: Print Head
Brand: Epson
Original: Japan

Imported famous Print head, hold 8*600 nozzle, could realize high speed industrial production and high quality printing.

Main Features

Name: Print head box
Brand: Audley
Original: China

Independent design fixes print head perfectly. It realizes fast speed print for industrial production.
