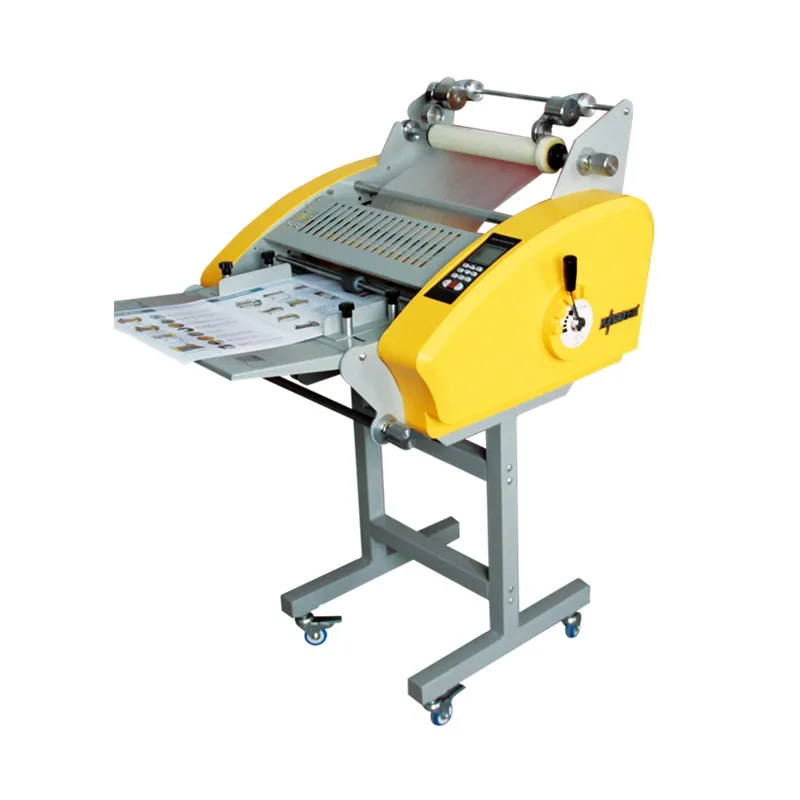

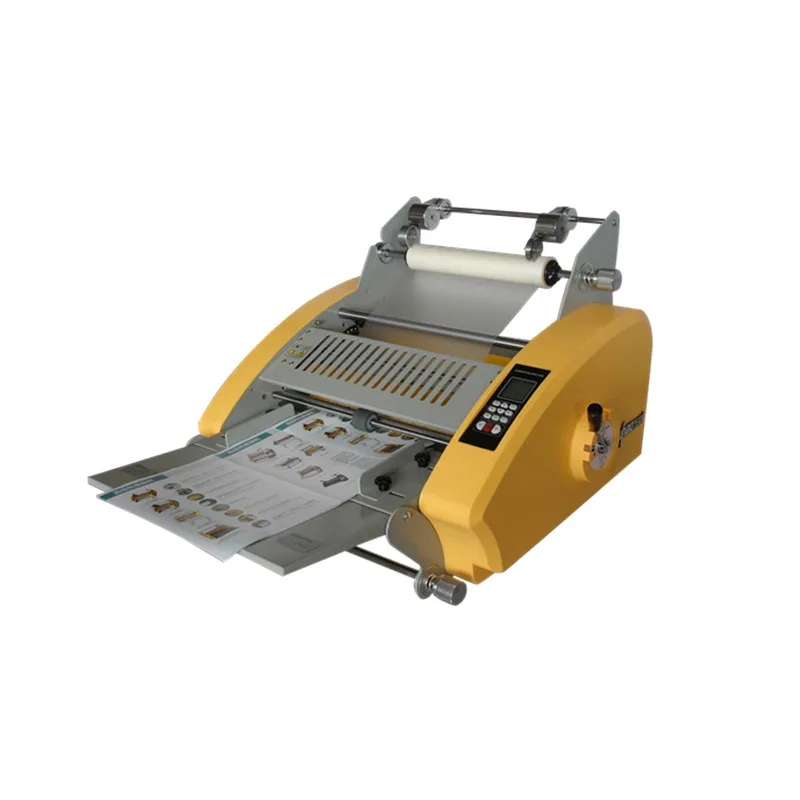

A heated roll laminator uses heated rollers to melt glue extruded onto lamination film. This film is in turn applied to a substrate such as paper or card using pressure rollers. The primary purpose of laminating with such a machine is to embellish or protect printed documents or images. Heated roll laminators can vary in size from office based pouch laminators to industrial sized machines. Such industrial machines are primarily used for high quantity/quality output by printers or print finishers.
1.Infrared tempearature sensor is comfort for long time operation, the temp erroe is controlled by 3°c.
2.imported big rubber roller is not easy to damage in the high temperature.
3.Patent od anti-rolling technology, it can be adjusted arbitrary accoding to the different thickness of paper
4.pressure adjustment, sutible for all kinds of paper
5.Intelligent and humanized operating system, it is easy to operate.
6.With take uo device for cold laminator
LOADING FILM

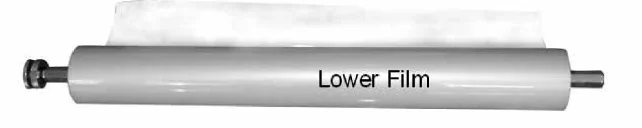

1.As shown in picture , insert the core adapter onto the upper/lower film shaft.

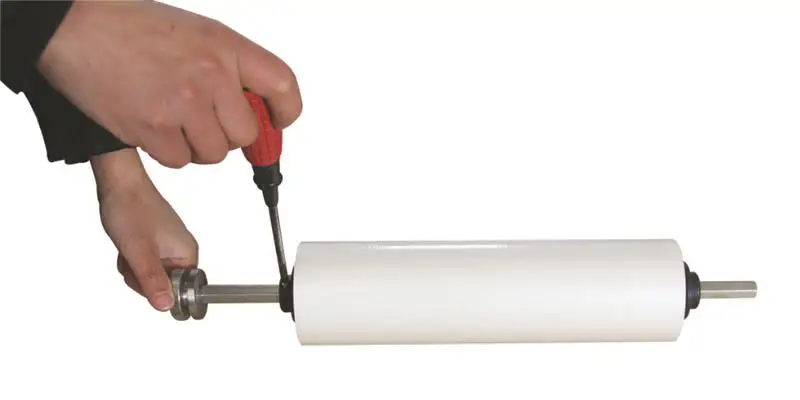

2.As shown in picture , using the special tool, fix the core adapter on the film shaft with screw-driver.

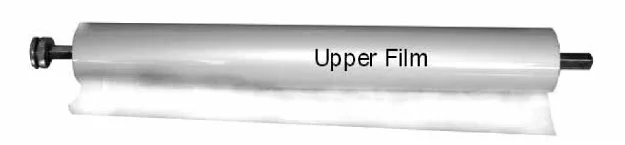

3.Set the glossy side of the upper and lower film towards the heat rollers.
(Glossy side is PET film and matte side is thermal polymer laminating adhesive)
4.Center film as shown in step 3 and 4.
1.Turn the power switch on("l" position). Power switch is located in the rear of the unit on the left side
2.Follow the steps in the "Loading Film" procedure by loading the upper shaft with OPP Film
3.Set the temperature and speed according to the Recommended Temperature and Speed section.

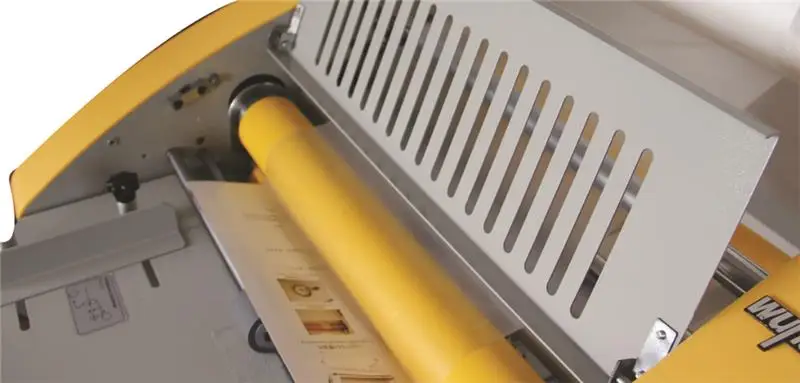

Fit the extended front table, open the safety

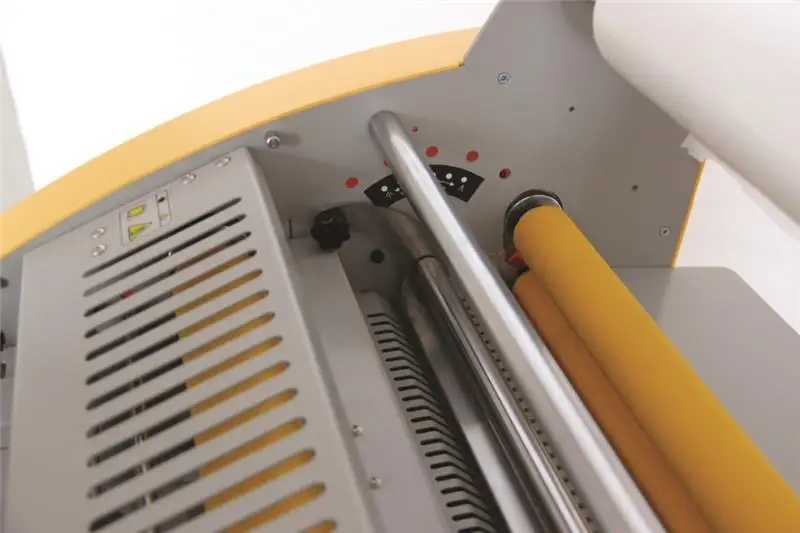

cover and then adjust the DECURLING BAR
to the lowest position

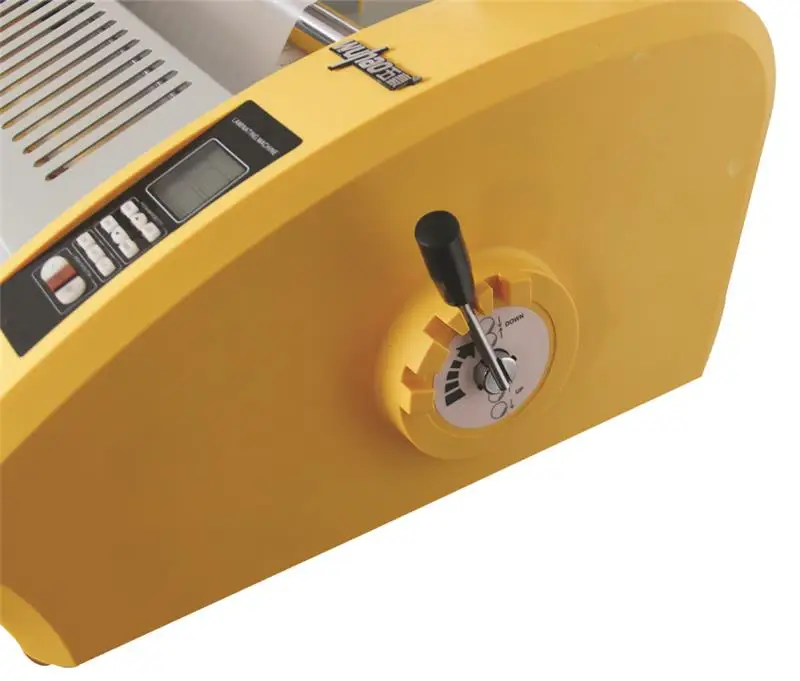

Adjust the PRESSURE LEVER to UP
Insert and push the leader board until board
reaches pull rollers

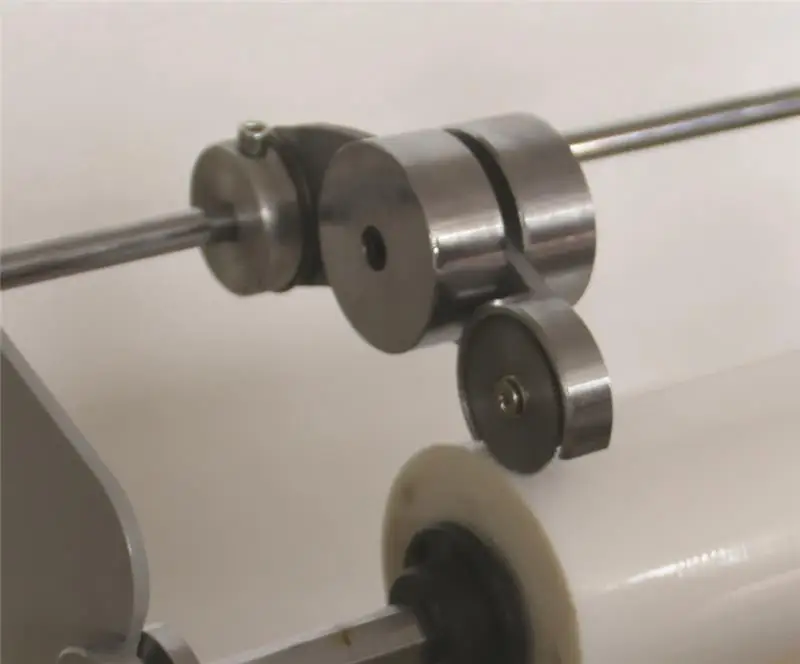

Adjust the position of the perforating blade on the
film (1-2mm)

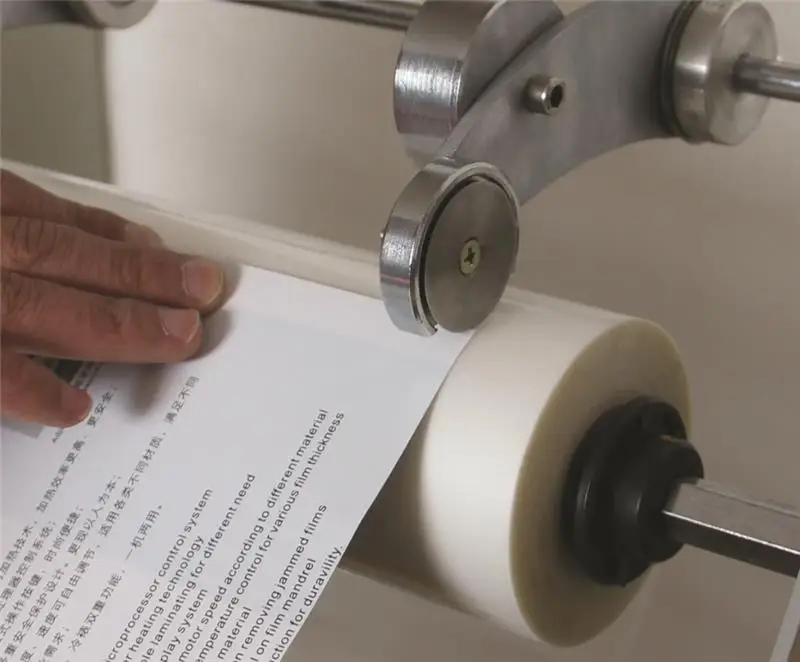

Fix the position of round blade according to the
width of the documents

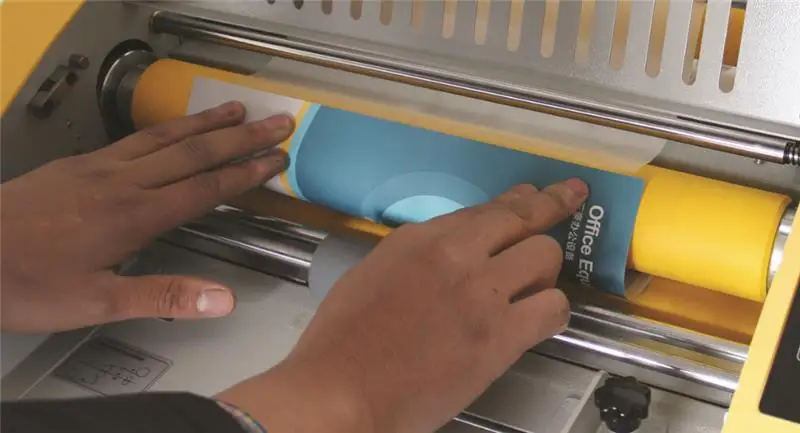

Please stick the excess film to the roller

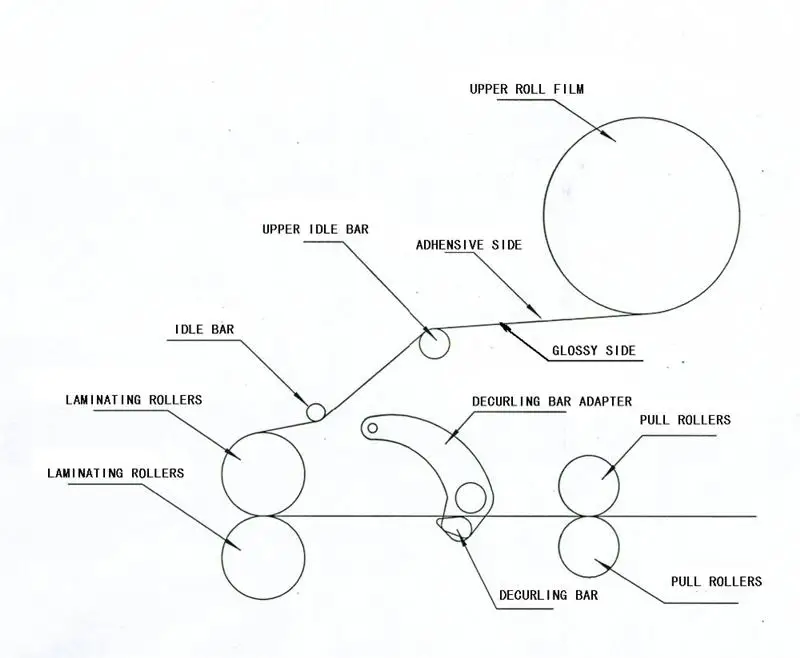

Thread the film over the upper ldle Bar and
underneath the Safety Cover until the film rests on
the upper roller
Sticker the leader board to the upper roller and film
Fit the extended front table,Close the Safety Cover.
Adjust the Guide-document according to the width
of the document
Adjust the nip setting to "Laminating" mode
14.Press the Run button and adjust the supply roll tension knobs by rotating clockwise or counterclockwise. Turn it until supply roll films have some resistance (the tension varies depending on the film thickness; the thicker the film the more tension is required)

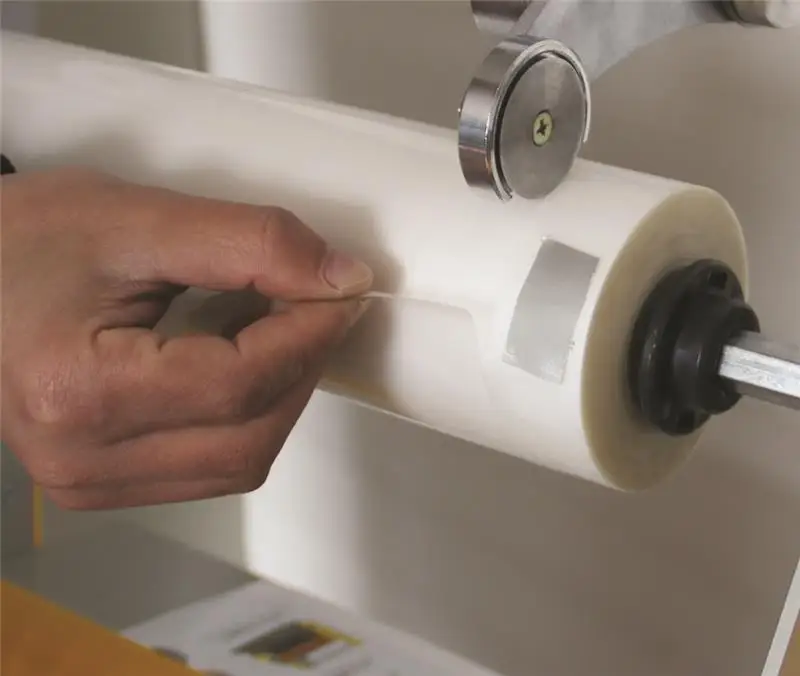

15. Slit the side film by your hand when the documents has completely exited the rear of the unit.
16.Set the roller nip setting to the appropriate position for the lamination or encapsulation application.
17.Adjust the DECURLING BAR according to the thickness of paper.
